The Commercial DWC hydroponic system is a high-density soilless growing solution designed for commercial greenhouse vegetable production. Based on Deep Water Culture (DWC), the system uses floating hydroponic rafts made from high-density XPS foam board to support plants while their roots remain in nutrient-rich water.
Unlike an NFT hydroponic system, where nutrient solution flows through growing channels, a DWC Hydroponic System keeps plant roots directly in the nutrient solution. With proper oxygenation, water and nutrients can be continuously available to the root zone.
The system is suitable for commercial greenhouses, vegetable farms, aquaponics projects, and other controlled growing environments.
A Commercial DWC Hydroponic System is a large-scale Deep Water Culture growing system designed for producing vegetables without traditional soil.
Plants are supported by Hydroponic Floating Rafts placed on the surface of a nutrient solution reservoir or growing bed. Net Pots or suitable growing containers can be installed in the raft openings to hold seedlings.
The basic structure is:
Floating Raft → Net Pot → Plant → Roots → Nutrient Solution
The roots remain in the nutrient solution while the floating raft provides physical support for the plants.
For commercial production, multiple floating rafts can be arranged across a larger growing area to create a high-density hydroponic growing system.
DWC stands for Deep Water Culture, one of the commonly used hydroponic growing methods.
In a DWC system, plant roots are placed directly into nutrient-rich water instead of growing in traditional soil. Because the roots remain submerged, oxygen supply is an important part of the system design.
Depending on the specific installation, aeration equipment can be used to help maintain suitable oxygen conditions in the nutrient solution.
This makes DWC different from NFT Hydroponics, where a shallow film of nutrient solution flows through a growing channel.
| Feature | DWC Hydroponics | NFT Hydroponics |
|---|---|---|
| Plant support | Floating raft / net pot | NFT channel |
| Root environment | Roots remain in nutrient solution | Roots contact a shallow nutrient film |
| Water movement | Nutrient solution remains in growing bed and is managed/circulated | Nutrient solution continuously flows through channels |
| Main component | Floating raft | NFT hydroponic channel |
| Typical crops | Leafy greens | Leafy greens and herbs |
| Commercial application | Greenhouses and large growing beds | Greenhouses, vertical systems and indoor farms |
Both systems can be used for commercial hydroponic production, but they use different methods to deliver water and nutrients to plant roots.

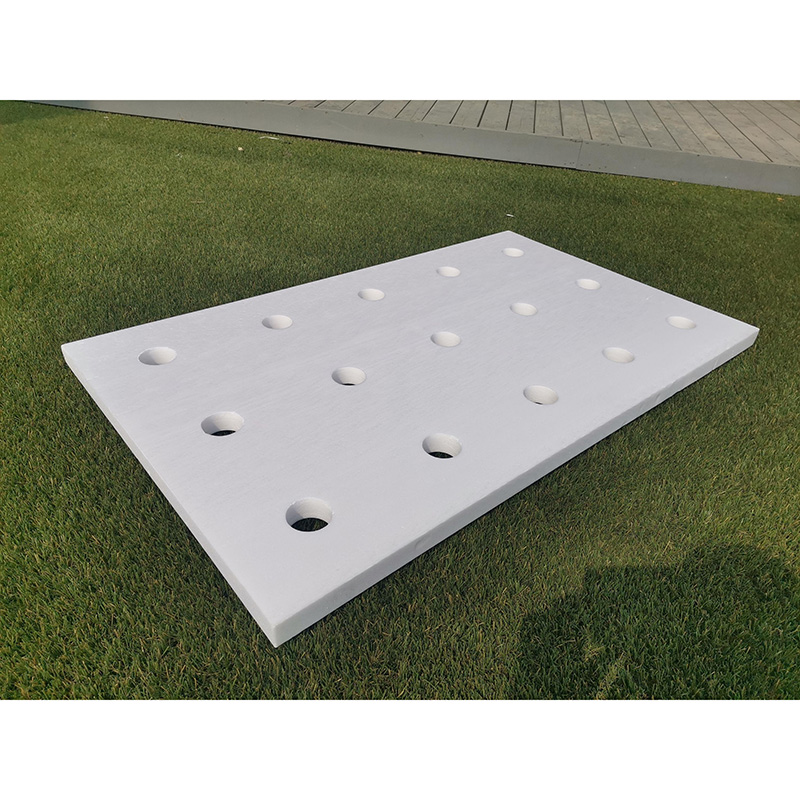

The floating raft is made from high-density XPS foam board, providing a lightweight structure for supporting plants on the surface of the nutrient solution.
XPS, or extruded polystyrene, is commonly used for hydroponic floating boards because it can provide a rigid and lightweight platform for growing applications.
The foam board can be designed with multiple planting holes to create a High Density Hydroponic System.
Depending on the growing project, the board dimensions and hole layout can be customized to match the greenhouse space, crop type, and desired planting arrangement.
One of the advantages of this Commercial DWC Hydroponic System is the ability to customize the floating raft according to the growing environment.
Customization can include:
Floating raft dimensions
Board thickness
Planting hole size
Number of planting holes
Hole spacing
Growing bed layout
For commercial greenhouse projects, customized DWC Hydroponic Rafts can be designed to fit different growing beds and production layouts.
This flexibility allows growers to make better use of available cultivation space.
The floating raft can accommodate multiple plants within a defined growing area, making it suitable for high-density vegetable production.
The planting density should be selected according to the crop, plant size, root development, lighting, airflow, and greenhouse conditions.
Common crops for Commercial DWC Hydroponic Systems include:
Lettuce
Spinach
Pak choi
Kale
Water spinach
Other leafy greens
Leafy vegetables are particularly suitable for DWC systems because many varieties have relatively compact root systems and can be grown at relatively high planting densities.
A Commercial DWC Hydroponic System is a type of Soilless Growing System. Plants do not need traditional agricultural soil because their roots receive water and nutrients directly from the nutrient solution.
This can be useful in areas where suitable soil is limited or where growers want to establish a controlled growing environment.
Soilless cultivation can also help keep the growing area more organized by eliminating many routine soil-related tasks.
Commercial greenhouses can provide a suitable environment for large-scale DWC production.
A commercial installation may include:
DWC growing beds
XPS floating rafts
Planting holes
Net pots
Water reservoirs
Nutrient solution
Aeration equipment
Water circulation equipment
Greenhouse environmental controls
The exact configuration depends on the greenhouse size, crop selection, growing density, water management requirements, and production objectives.
Multiple floating rafts can be arranged across the growing area to create a larger Commercial Hydroponic System.
The floating raft design can also be used in aquaponics systems.
Aquaponics combines aquaculture and hydroponics. Water from fish production is circulated through the plant growing area, where plants can utilize available nutrients before the water returns to the aquaculture system.
A floating raft can provide physical support for plants while their roots extend into the water.
However, aquaponic water management differs from conventional hydroponics, so the system should be designed around the specific fish, plants, filtration, water quality, and circulation requirements.
The floating raft is available in white XPS foam board, providing a clean and highly visible growing surface.
A light-colored board can make plant positions and planting holes easy to identify during daily greenhouse operations.
The board can also provide a consistent surface for arranging plants across the growing area.
The Commercial DWC Hydroponic System combines floating raft cultivation with controlled nutrient management for commercial soilless growing.
Key advantages include:
Deep Water Culture growing method
High-density planting configuration
High-density XPS foam board
Lightweight floating raft structure
Customizable board dimensions
Customizable planting-hole layout
Suitable for commercial greenhouses
Suitable for leafy vegetables
No traditional agricultural soil required
Compatible with hydroponic and aquaponic applications
Suitable for large growing areas
The operating principle is straightforward.
The DWC growing bed is filled with suitable nutrient solution or connected to the required water management system.
The Hydroponic Floating Raft is placed on the surface of the growing bed.
Seedlings are placed into net pots or suitable growing supports and inserted into the planting holes.
As plants grow, their roots extend downward from the floating raft into the nutrient solution.
The nutrient solution should be monitored and managed according to crop requirements. Proper aeration and water quality management are particularly important because the roots remain in the solution.
Growers should regularly check plant health, nutrient conditions, water level, root development, and greenhouse environmental conditions.
For commercial growers looking for a high-density hydroponic system, DWC floating raft cultivation provides a practical way to support multiple plants across a large growing area.
The use of customizable XPS floating rafts allows the system to be adapted to different greenhouse layouts and planting requirements.
Compared with traditional soil cultivation, DWC eliminates the need for agricultural soil and allows growers to manage water and nutrients directly within the growing system.
For leafy vegetable production, commercial DWC hydroponics can be integrated into greenhouse and controlled-environment agriculture projects.
A Commercial DWC Hydroponic System is a large-scale Deep Water Culture growing system in which plants are supported by floating rafts while their roots remain in nutrient-rich water.
DWC stands for Deep Water Culture, a hydroponic growing method in which plant roots remain directly in nutrient solution.
A DWC Floating Raft is a floating board used to support plants above a nutrient solution. Planting holes allow net pots and plant roots to extend into the growing water.
This floating raft uses high-density XPS foam board, which provides a lightweight and rigid structure for hydroponic growing applications.
DWC systems are commonly used for leafy greens such as lettuce, spinach, pak choi, kale, and water spinach. Crop suitability depends on the specific system and growing conditions.
Yes. The raft can be customized in terms of dimensions, thickness, planting-hole size, hole quantity, and spacing according to the growing project.
Yes. Multiple DWC floating rafts can be arranged in commercial greenhouse growing beds to create a larger hydroponic production system.
Yes. Floating raft systems can be incorporated into aquaponics, but water quality, filtration, oxygenation, fish requirements, and plant requirements need to be considered when designing the system.
